CUT 100 "Greatec"
- Availability: In Stock
|
Search:
|

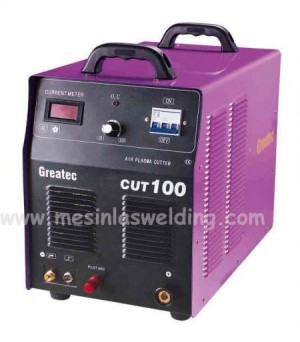

INVERTER AIR PLASMA CUTTING MACHINE (CUT100)
Function :
- High cutting speed can be several times of touch cutting, low operation cost
- Narrow cutting gas, smooth cutting surface, small distortion, no need to reprocess
- Widely use in cutting simple steel, stainless steel, aluminium, titanium, nickel combined metal, cast iron and other metals
Specification :
| Input Power Voltage/Frequency | 3 Phase 380V ± 10%, 50/60Hz |
| Rate Input Power Capacity | 16.5 KVA |
| Output Current Range | 20-100A |
| Rate Output Voltage | 130V |
| O.C.V | 260V |
| Duty Cycle 25C | 60% |
| Efficiency | 85% |
| Power Factor COS | 0.93 |
| Arcing Way | Non-Contact |
| Weight | 36 Kg |
| Dimension | 460x334x491 |
| Insulation Class | F |
| Protection Class | 1P23 |
| Suggesting Air Compressor Air Displacement | 0.36 m3/min |
| Max Cutting Thickness | 30 mm |
