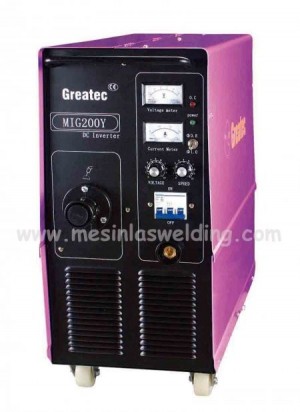

MIG 200 "GREATEC"
- Availability: In Stock
INVERTER MIG/CO2 WELDING MACHINE MIG 200
Feature :
1. Small and Light : The size of the mid-frequency transformer in this series is reduced to only several % of that in the traditional arc welding machines. Our machines are about 1/5-1/10 as heavy and 1/3 as big compared the tradtional ones.
2. High Efficiency : Energy efficiency reaches 80-85% and power factor can reach as high as 0.93 over 1/3 of energy is saved compared to traditional ones.
3. Step-less adjustment for welding current and voltage, can fulfill the requirement for different welding tasks.
4. Stable welding with little welding spatter. Nice form of welded seam.
5. Auto-compensation against power fluctuation
6. Application base for carbon steel stainless steel low-alloy steel
Spesifikasi :
| Input Voltage | 1 Phase, 220V ± 15% |
| Frequency | 50/60Hz |
| Rated input current | 37.4 A |
| Output Current Range | 50-200A |
| Output Voltage Adjustment | 16.5-24V |
| Duty Cycle | 60% |
| Power Factor | 0.73 |
| Efficiency | 80% |
| Type of Wire Feeder | BUILT-IN |
| Wire-feeding Speed | 2.5-18 m/min |
| Housing Protection Grade | 0.8/1.0mm |
| Insulation Protection Grade | IP21 |
| Insulation Grade | F |
| Applicable Plate Thickness | 0.8 mm Above |
| Net Weight | 35 Kg |
| Dimension | 570x295x558 |
| Wire Diameter | 0.8/1.0mm |
| Current Range | 50-200A |
