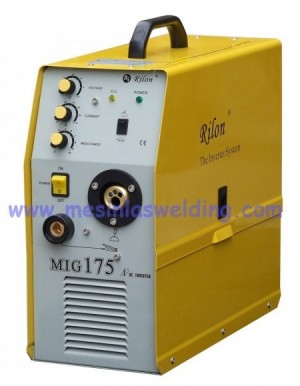

Rilon MIG 175

  • Availability: In Stock

Inverter MIG/CO2 Welding Machine MIG 175

Features:
 1. Small and Light :
The size of the mid-frequency transformer in this series is reduced to only several % of that in the traditional arc welding machines. Our machines are about 1/5 – 1/10 as heavy and 1/3 as big compared the traditional ones.
2. High efficiency :
Energy Effeciency reaches 80-85% and power factor can reach as high as 0.93. Over 1/3 of energy is saved compared to traditional ones.
3. Step-less adjustment for welding current and voltage, can fulfill the requirement for different welding tasks.
4. Stable welding with little welding spatter. Nice form of welded seam.
5. Auto-compensation against power fluctuation.
6. Application base for carbon steel, stainless steel, low-alloy steel.
.
Input voltage…………………………. AC 220V ±15%
Frequency……………………………... 50/60 Hz
Rated input current…………………. 29.7 A
Output current range………………. 40-170 A
Output voltage adjustment…….. 15-26 V
Duty cycle……………………………... 60 %
Power factor…………………………... 0.73
Efficiency……………………………..... 80 %
Type of wire feeder…………………. BUILT-IN
Wire-feeding speed…………………. 2­15 m/min
Welding-wire diameter……………. 0.8/1.0 mm
Housing protection grade………… IP21
Insulation grade……………………… F
Applicable plate thickness………. 0.6mm Above
Net weight….…………………………. 20 Kg
Dimension…………………………….. 482x197x466 mm
