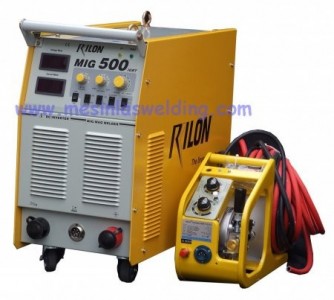

Rilon MIG 500

  • Availability: In Stock

Inverter MIG/CO2 Welding Machine MIG 500

Features :

  1. By adopting the technology of HF inverters with IGBT module, the inverting frequency can reach as high as 20 kHZ Quick response.
  2. PWM control, high quality and stable performances
  3. Digital display of welding current and voltage. Easy and convenient to use
  4. Self-adjustment of welding currents within 30 mm of stretching length. Suitable for changing welding positions.
  5. Stable welding process, high resistance to power fluctuation (310-450V)
  6. Application base for carbon steel, stainless steel, low-alloy steel
Input voltage........................... AC 380V ±15%
Frequency............................... 50/60 Hz
Rated input current................... 37 A
Output current range................. 80-500 A
Output voltage........................ 16-44 V
Duty cycle.............................. 60 %
Power factor........................... 0.93
Efficiency............................... 85 %
Wire-feeding speed.................. 3­15 m/min
Welding-wire diameter.............. 1.0/1.2/1.6 mm
Insulation grade...................... F
Housing protection grade........... IP21
Applicable plate thickness......... 1.2 mm Above
Output cable.......................... 50 mm² Above
Net weight............................ 42 Kg
External dimension................. 760x315x540 mm
Wire diameter (ф).................. 1.0/1.2/1.6 mm
Current range........................ 80-500 A
