WELDING LASER / LASER CUTTING MWELD
- Availability: In Stock

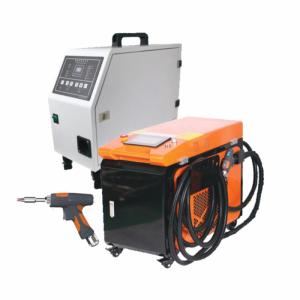

MEGAWELD Laser Welding / Laser Cutting (HW 1000W)
Description
Having it firstly developed by Gubang, the handheld welding machine comes into existing with the latest generation of fiber laser, automatic wire feeder and newly developed wobble welding head, which make completely unique to fill the gap of handheld laser welding market.
With simple instructions, the machine works into a perfect welding pool in a decent amount of time and requires no consumables electrode, which perfectly replaces the processing way of traditional manual metal arc welding machines over thin stainless-steel plate, iron plate and galvanized plate. Thanks to its welding flexibility on irregular shapes of workpieces, the machine is widely used in kitchen cabinets and utensils, stairs handrails and elevators, store racks, ovens, door and window guard bars, power distribution boxes, stainless steel furniture and others industries.
Function & Configuration
- LASER WELDING ✓
- LASER CUTTING ✓
- Optical Fiber Cable 10m
- Digital Wire Feeder ✓
- Laser Welding Torch 2 pcs
- Wire Feeding Liner (0.8/1.0 roller 2pcs) 3m
- Wire Feeding Liner (1.0/1.2 roller 2pcs) 4m
- Welding Copper Nozzle 6 pcs
- Cutting Nozzle 1 pcs
- Protective Lens 5 pcs
- Gas Hose 3m
- Goggle 1 pcs
- Spanner 1 set
Spesifikasi :
| Input Voltage | AC 220V |
| Laser Source Power | 1000 (Brand:Max) |
| Wavelength of Laser (mm) | 1070-1090 |
| Output Optical Fiber Length (m) | 10 |
| Working Mode | Continuous / Adjustable |
| Working Speed (mm/s) | 0~120 |
| Cooling Method | Inbuilt Water Chiller (Brand:Hanli) |
| Wire Feeder | Separate |
| Working Temperature (ºC) | 15~35 |
| Working Humidity | <70% non-condesing |
| Working Depth (mm) | 0-5 |
| Working Beam Width (mm) | 0-5 |
| Dimension (L*W*H) (cm) | Power 95*75*103 Wire Feeder 60*30*40 |
| Welding Material | Carbon Steel, Stainless Steel, Aluminium, Brass, Etc. |
